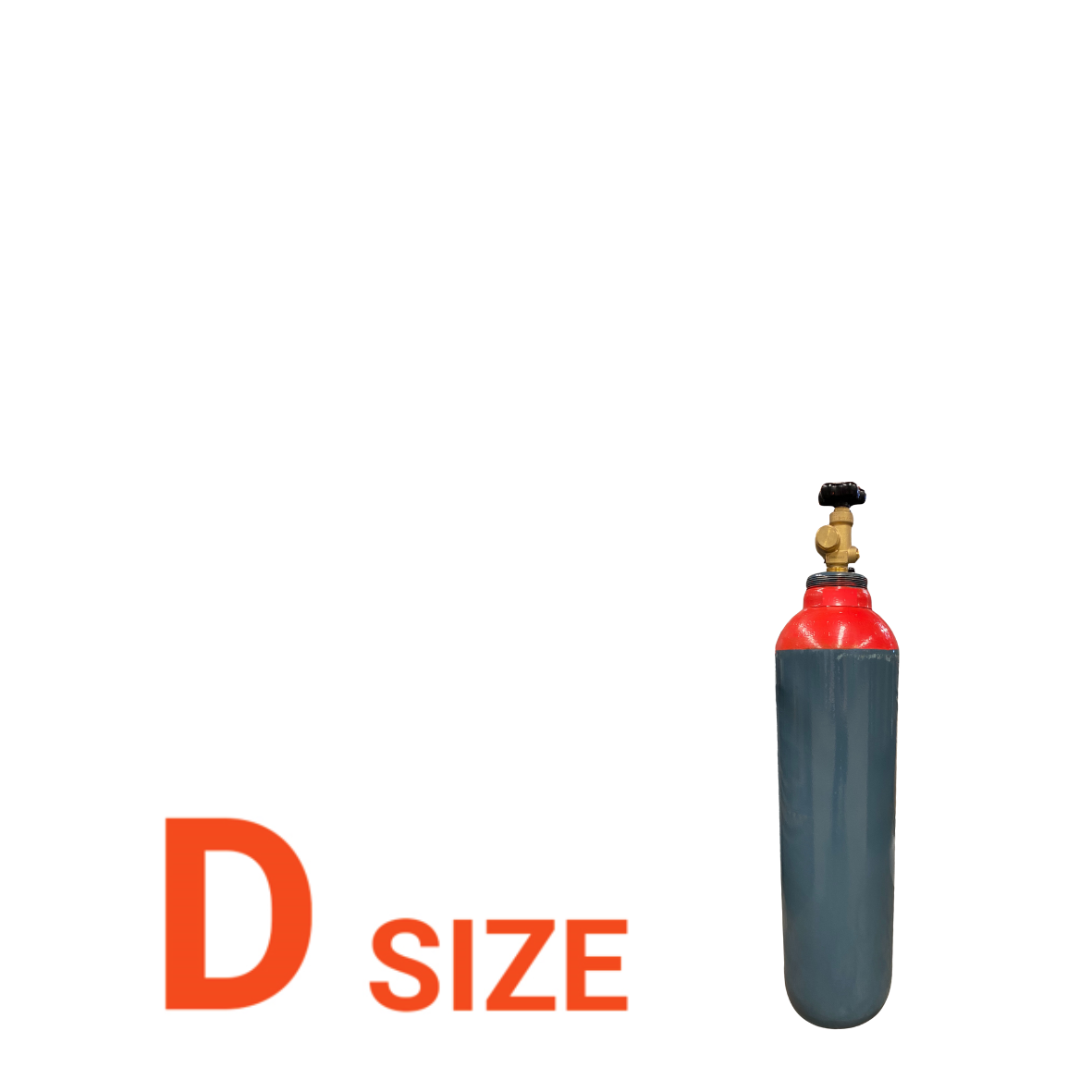

Trace D Size

Trace Gas, is a premium leak detection solution, it is a valuable tool for quickly identifying leaks in systems or pipework. Comprised of 5% Hydrogen and 95% Nitrogen, Trace Gas allows the Hydrogen molecules to escape through the smallest of leaks when introduced into a system or pipework. This escaping gas can be easily detected using a suitable electronic leak detector.

Some key benefits of using Trace Gas include:

1. Fast and more effective leak detection solution.
2. Ability to detect leaks much smaller than with other methods.
3. Time-saving on the job.
4. Commonly used in HVAC and plumbing applications.
5. Particularly convenient for finding leaks in difficult-to-access areas where leak detection spray is impractical.
6. Non-flammable and non-toxic, ensuring safety during use.
7. Environmentally friendly method for leak detection.
8. Capable of serving as a faster and more accurate drop-test gas.

Specifications

• Cylinder m3 at 15°C & 101.3 kpa – 1.8
• Cylinder Water Capacity – 10L
• Outlet Connection (Valve) – Type 50
• Cylinder Weight – 19kg
• Cylinder Dimensions – 765mm x 150mm

Height includes the valve.  Cylinder dimensions and weights are approximate as variations can occur due to manufacturing tolerances.

Safety Data Sheet
