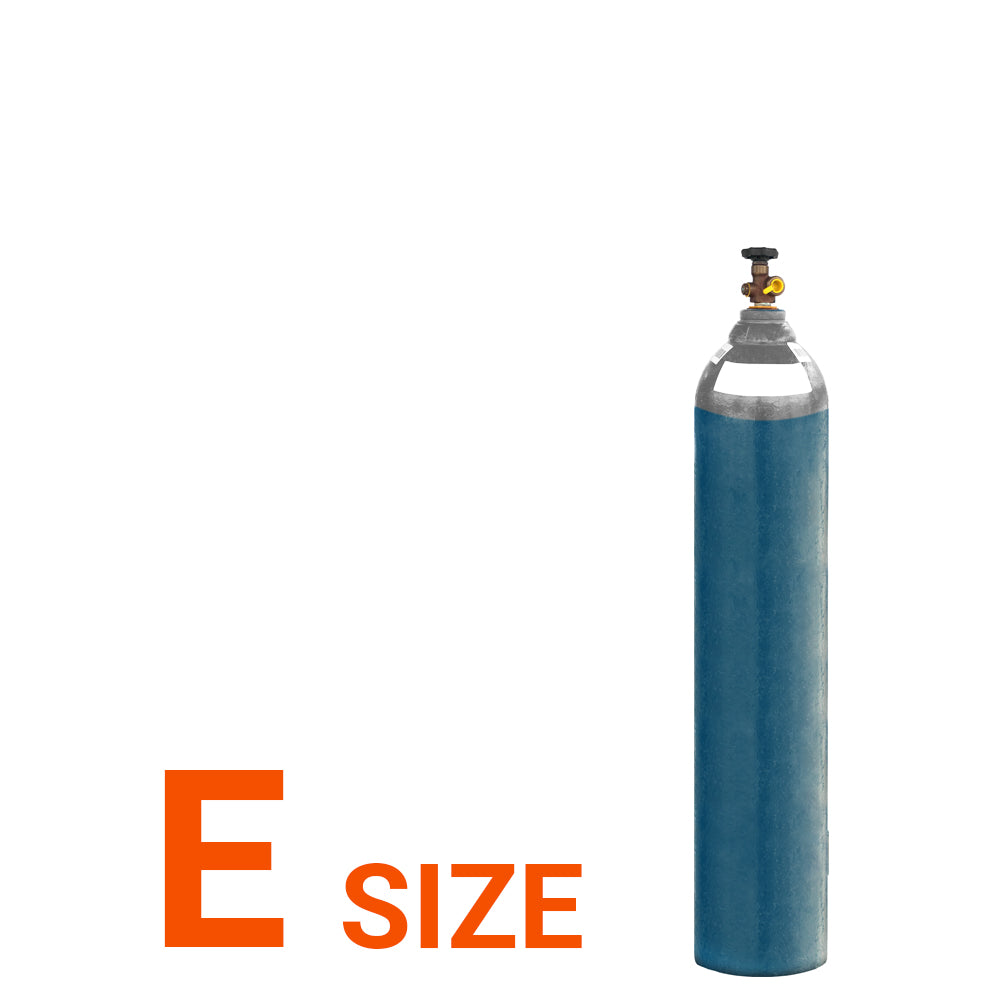

OneGas 5/2 E Size

OneGas 5/2 is a gas mixture composed of 5% Carbon Dioxide, 2% Oxygen in Argon. It is specifically designed for the welding of mild, carbon, and low alloy steel. This gas mixture promotes the spray transfer of welding materials, which enhances productivity during the welding process. This Argon/CO2/Oxygen mixture combines the beneficial features of pure Argon with the small percentage of CO2, which improves penetration and arc stability. As a result, the welds produced using this mixture are cleaner. It is suitable for a welding thickness range of 1-10mm.

Specifications

• Cylinder m3 at 15°C & 101.3 kpa – 5.0
• Cylinder Water Capacity – 25L
• Outlet Connection (Valve) – Type 10
• Cylinder Weight – 36.5kg
• Cylinder Dimensions – 1070mm x 210mm

Height includes the valve.  Cylinder dimensions and weights are approximate as variations can occur due to manufacturing tolerances.

Safety Data Sheet
