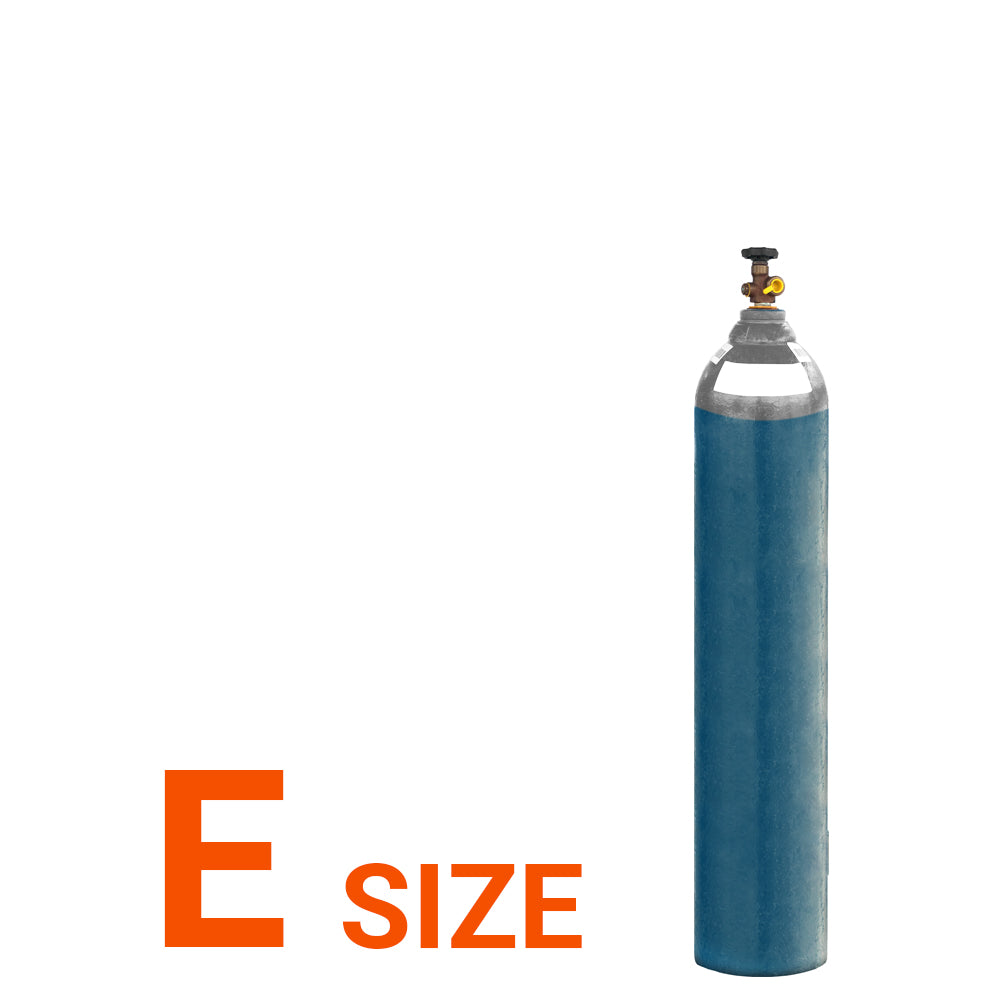

OneGas 90/10 E Size

OneGas 90/10 is a gas mixture consisting of 10% Carbon Dioxide and 90% Argon. It is specifically formulated for MIG welding of mild, carbon, and low alloy steels. This gas mixture is designed to minimize spatter and achieve high travel welding speeds. The higher proportion of Argon and CO2 in this mixture provides enhanced weld penetration, particularly on thicker cuts of steel. It is recommended for a welding thickness range of 1-16mm.

Specifications

• Cylinder m3 at 15°C & 101.3 kpa – 5.4
• Cylinder Water Capacity – 25L
• Outlet Connection (Valve) – Type 10
• Cylinder Weight – 36.5kg
• Cylinder Dimensions – 1070mm x 210mm

Height includes the valve.  Cylinder dimensions and weights are approximate as variations can occur due to manufacturing tolerances.

Safety Data Sheet
