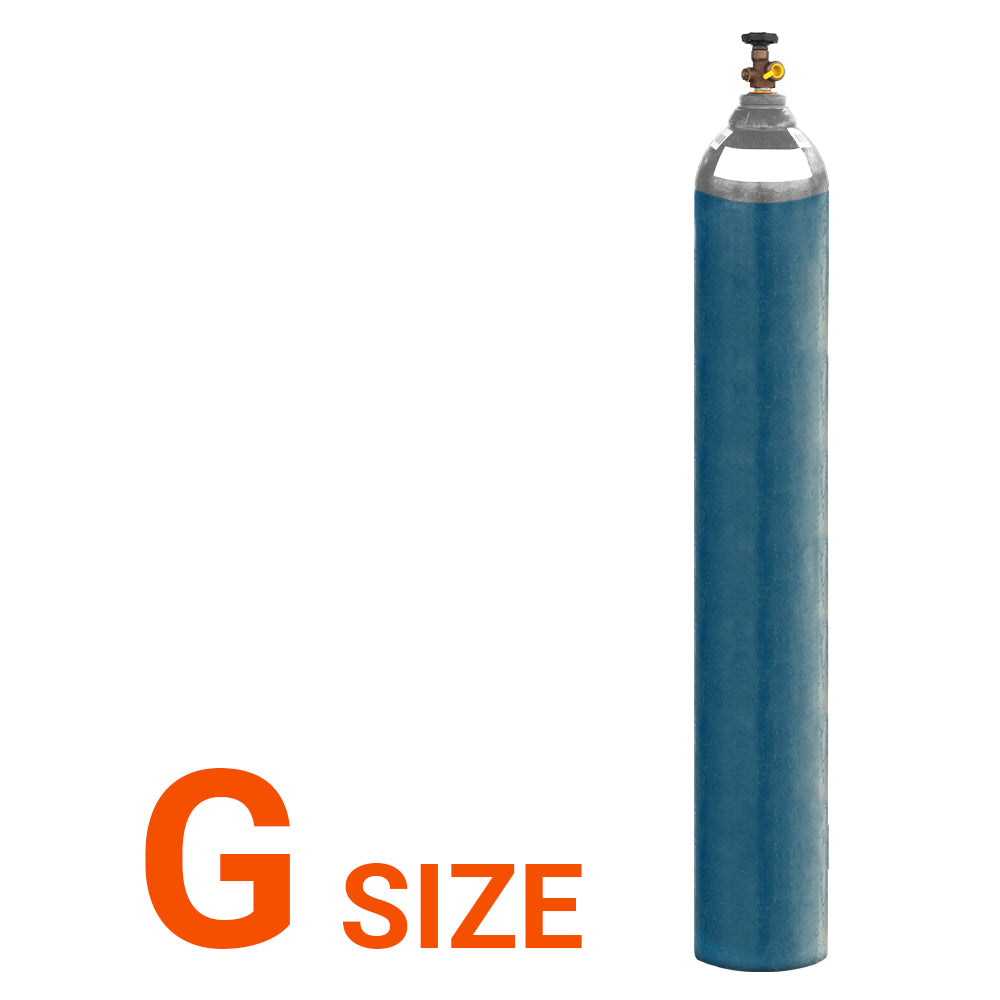

OneGas 16/3 G Size

OneGas 16/3 is a shielding gas mixture composed of 16% Carbon Dioxide, 3% Oxygen in Argon. It is specifically designed as a general-purpose gas mixture for MIG welding applications. This mixture is suitable for both short arc and spray transfer modes and is compatible with solid wires used on mild steels. The presence of CO2 allows for increased weld penetration, while the Oxygen enhances arc stability, resulting in cleaner and more precise welds. It is recommended for welding thicknesses ranging from 2-22mm.

Specifications

Cylinder m3 at 15°C & 101.3 kpa – 10.8

Cylinder Water Capacity – 50L

Outlet Connection (Valve) – Type 10

Cylinder Weight – 70.1kg

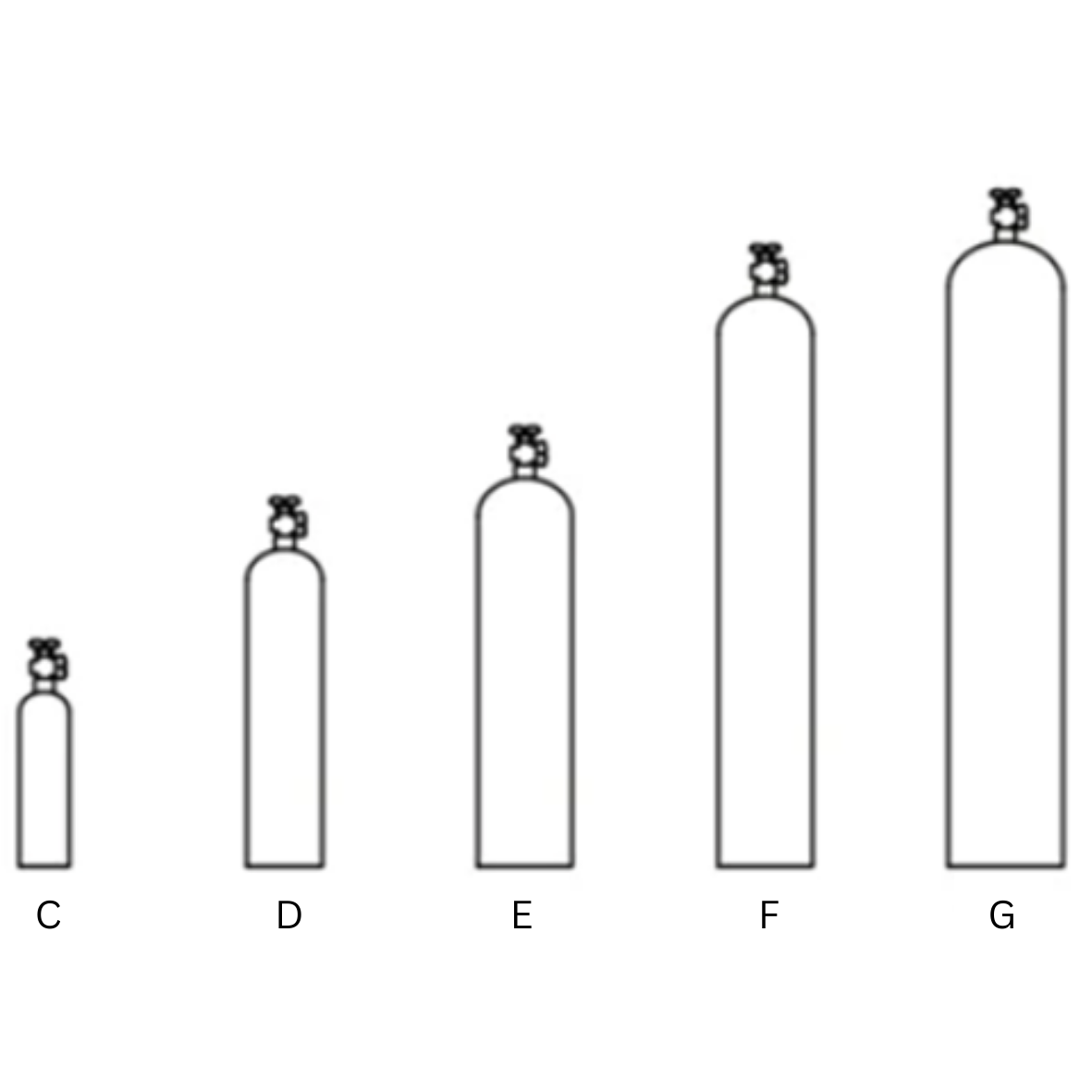

Cylinder Dimensions – 1590mm x 235mm

Height includes the valve.  Cylinder dimensions and weights are approximate as variations can occur due to manufacturing tolerances.

Safety Data Sheet
